Magna Beams are produced by a licenced manufacturer from small pieces of Merbau/ Kwila timber using a durable, structural glue. They are ideal for use in structures where the beauty of a rich red/brown hardwood is to be expressed or where superior strength is required. They can be used in exposed external environments including bush-fire prone areas and are resistant to termites. They stay straighter and are available in longer lengths than solid timber beams. Refer to Magna Beam Span Tables.

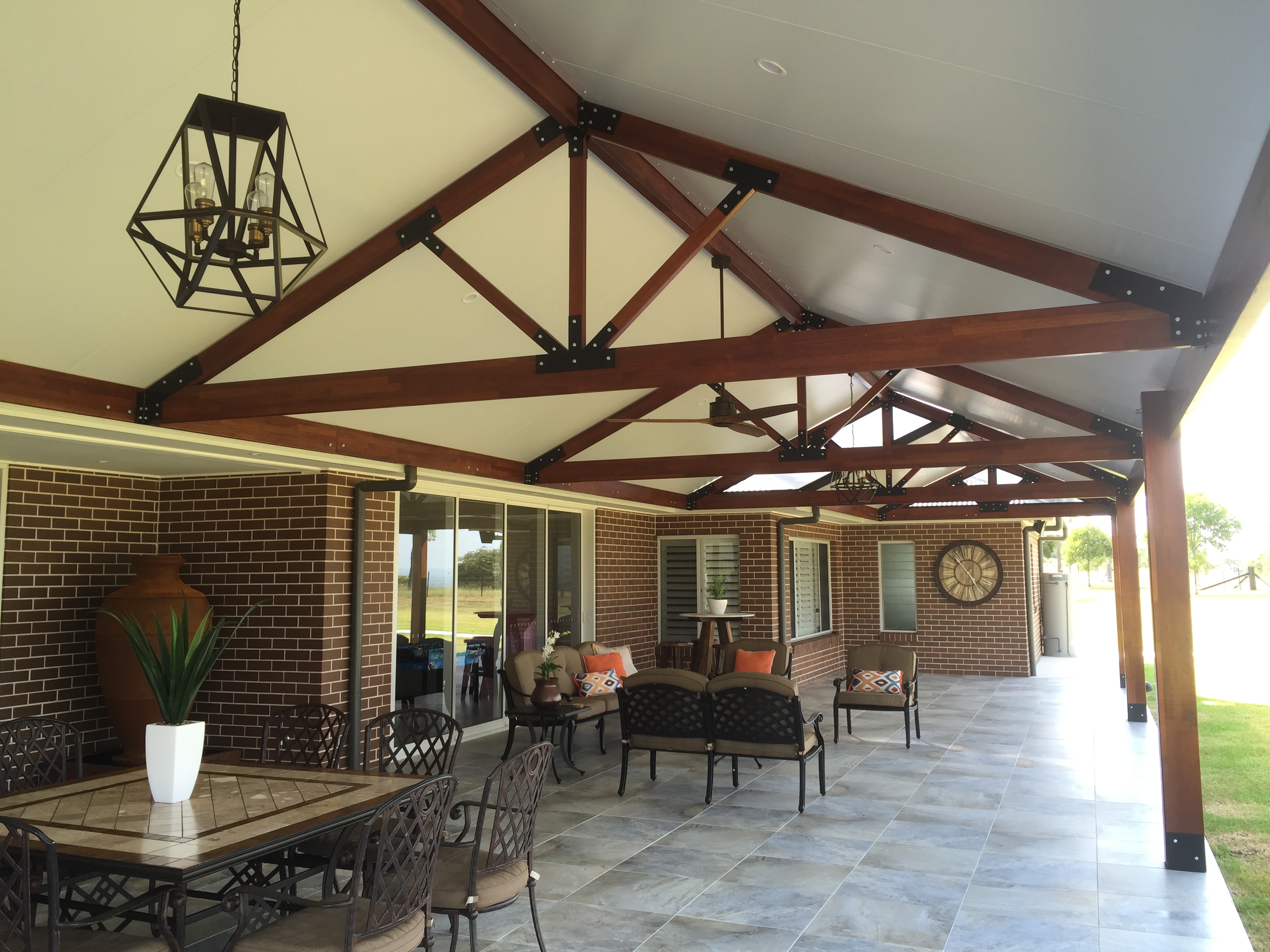

Gable Roof 7

Standard sizes

  • Lengths: can be made in any length up to 8m.
  • Thicknesses: 35mm, 42mm, 65mm, 80mm
  • Depth: 70mm, 90mm, 115mm, 140mm,
    165mm, 190mm, 240mm, 290mm

Specification

  • Timber: Merbau/ Kwila Intsia bijuga
  • Moisture: 12-16%
  • Strength: GL17
  • Adhesive: Phenol Resorcinol Formaldehyde
  • Service Class: Suitable for Class 3 environments.
  • Appearance grade: A
  • Durablity: Class1. Life expectancy 40 years +

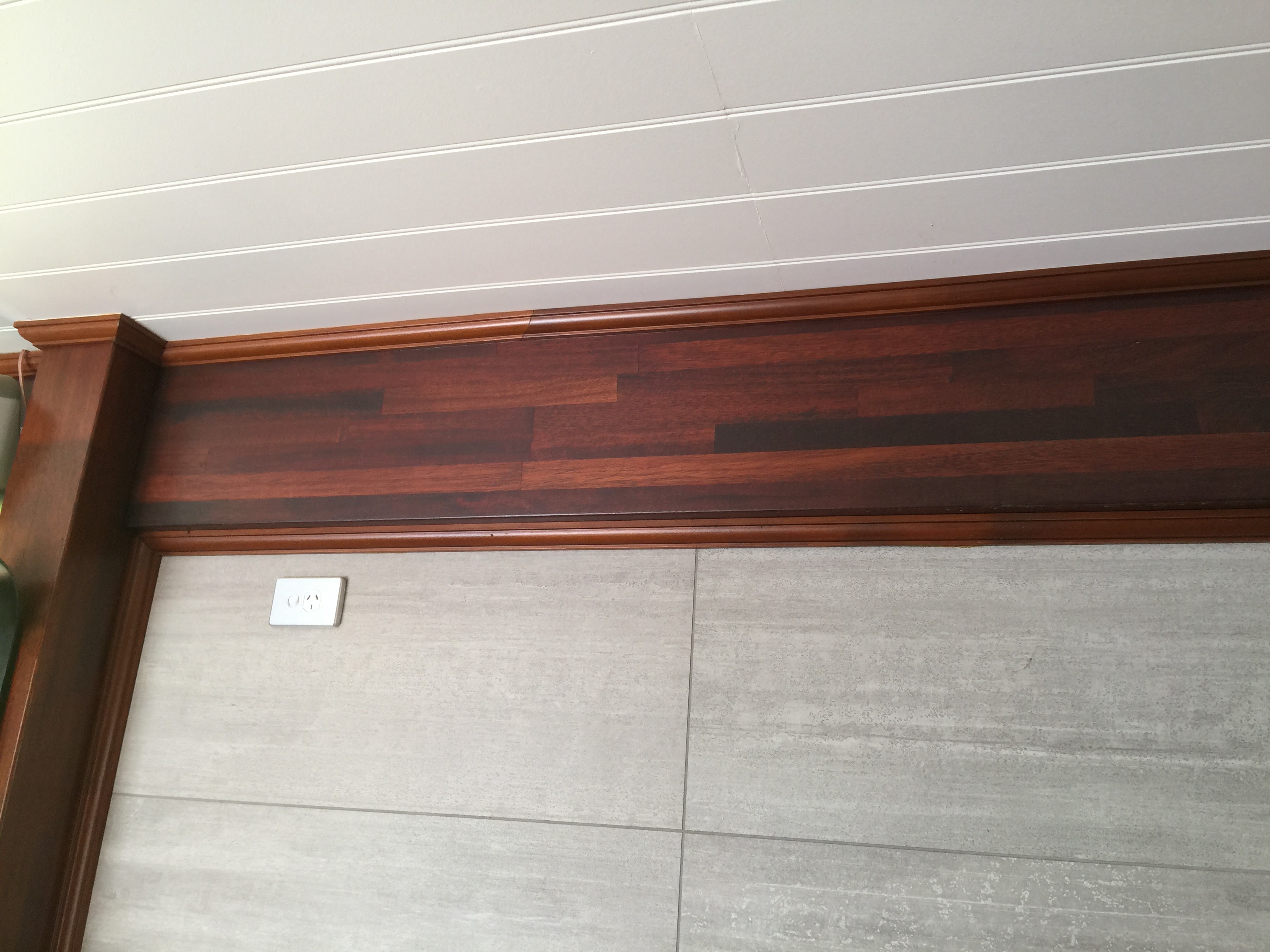

IMG_1249

Check Magna Handling, Installation and Maintenance Instruction before using.



Can be used in exposed environments including bushfire prone areas

new-logo

Outstanding strength and in-service performance of quality hardwood with a 15-year warranty
